Button feeding systems separate bulk buttons and present one correctly oriented piece to assembly, inspection or packing. Flat buttons, shank buttons and decorative faces create different handling questions. Start with the required pick-up condition and prove the route using the real button range.
Speak directly with Sorting Solutions about button orientation and automatic feeding.

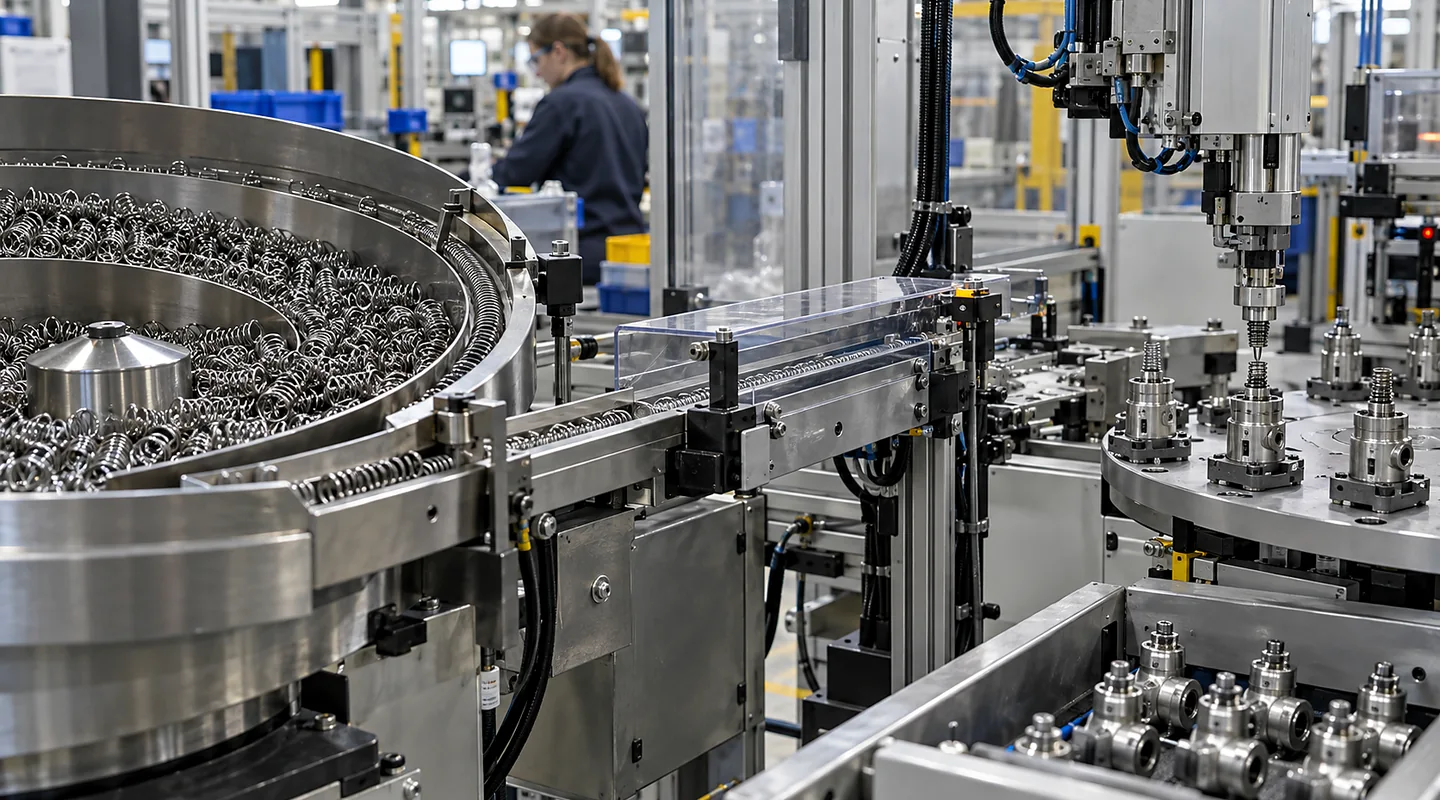

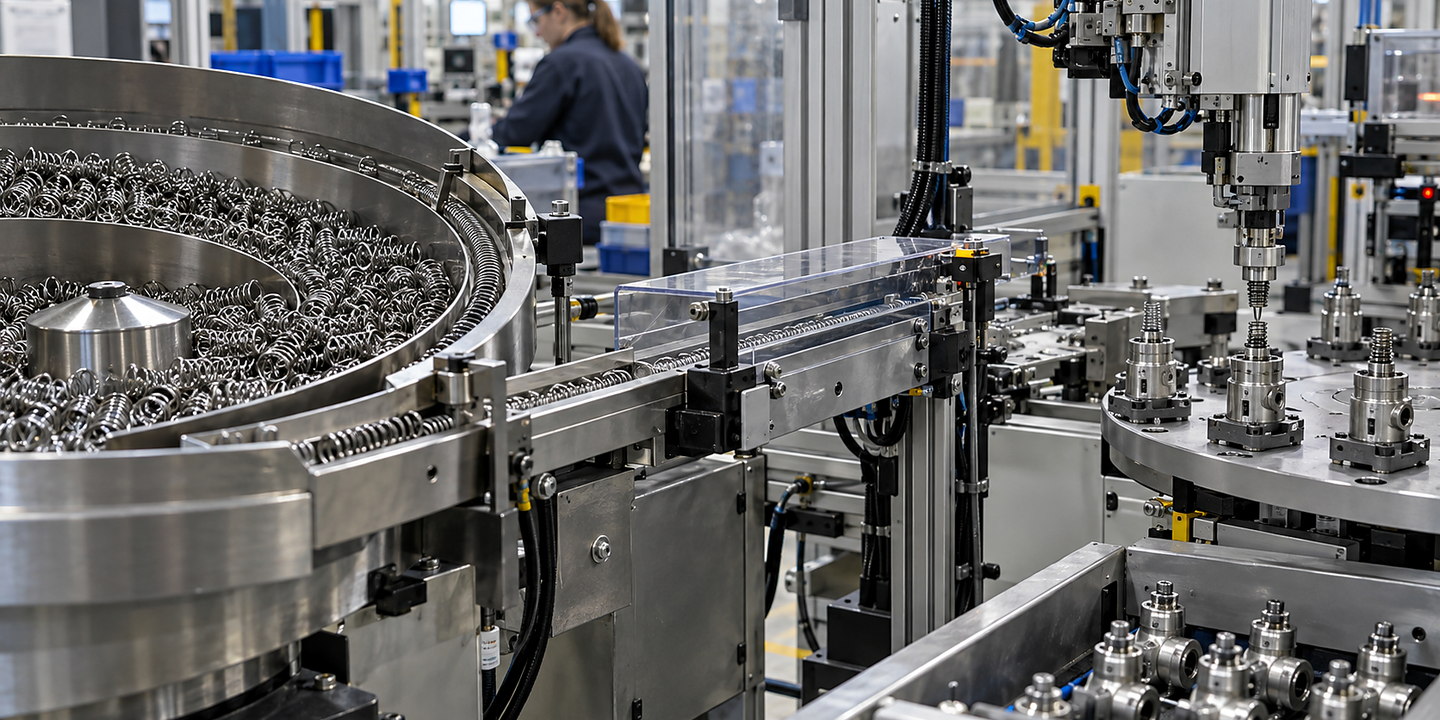

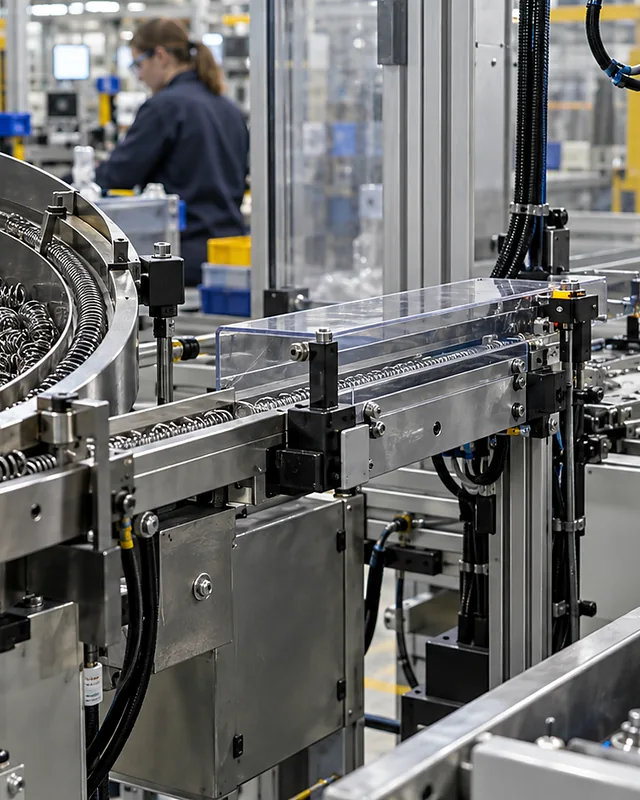

Photographs show general component feeding, including coil springs. Button feeding must be assessed with the actual button range and required pick-up condition.
Supply buttons covering the size, thickness, finish and hole or shank variations to be handled. Define which face and rotational position the next operation needs. Test nested or overlapping buttons and agree how orientation is confirmed at the pick point before selecting the feeding and separation arrangement.
A reliable button feeder must deliver the correct face and position without turning a cosmetic component into a reject.
Send side views as well as face photographs. Record diameter, thickness, dish, shank and hole features. Explain which differences are separate products and which are normal supplier variation so the proposed tooling does not reject acceptable parts.
Define the visible face, underside and any rotational requirement at hand-off. A button with holes or a logo may need more than face-up presentation. Include how the downstream equipment confirms the orientation before taking the part.
Supply buttons in the condition in which operators will load them. Trial shallow nesting, stacks and overlapping parts rather than hand-separating every sample. Record double presentation and the method used to return or contain unsuitable pieces.
Mark decorative, coated or polished areas and define the acceptable cosmetic finish. Compare samples before and after repeated circulation. A feeder that delivers the right orientation still needs a separate check for scuffing, chipped edges and trapped debris.
Provide the gripper or receiving nest, pickup height, available clearance and machine demand signal. Agree when the part is considered available and when the next one can advance. Check missing-part and double-part responses during the trial.
Separate adjustments from replacement tooling and record how settings are recovered. Compare usable delivery for the least cooperative button with replenishment included. For frequent or highly varied formats, compare the proposed bulk route with controlled tray presentation.
The right choice changes with component geometry and variation for button orientation & automatic feeding, surface, fragility and entanglement behaviour, your line layout and required results.
Create a format list with a photograph of the required finished orientation for each button. Run normal mixed bulk conditions within each approved format, include replenishment and record accepted single parts, orientation errors, damage and interventions. Keep the same downstream pickup arrangement when comparing routes so a good feeder demonstration does not hide a difficult machine hand-off.
Use the selection guide to compare the scope, then send the specification checklist with your application enquiry.
Your final solution for button orientation and automatic feeding must reflect the law, current standards and site-specific risks that apply to your installation.
